Spring pad front rear SUZIKI GRAND VITARA I Ф62 x Ф73 x 34 x 50mm - set of four pieces

Rubber pad lifting spring front, rear Suzuki Grand Vitara 1 - set of 4 pieces

Spring pads - set of four

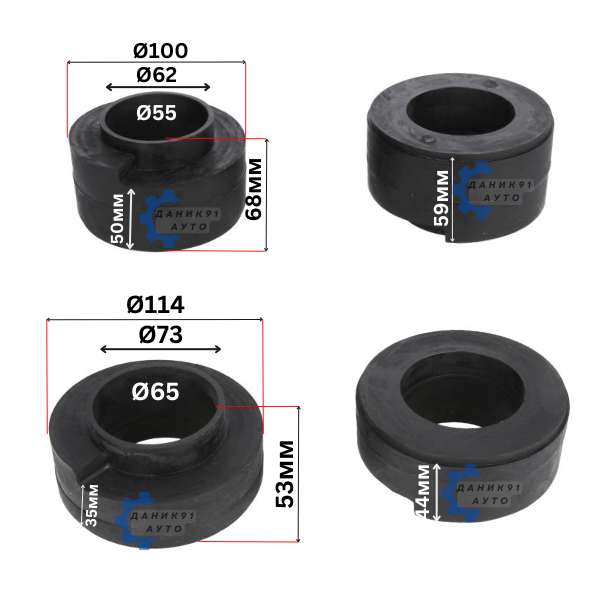

• Rear outer diameter (mm): Ø 100 / Ø 62
• Front outer diameter (mm): Ø 114 / Ø 73
• Rear inner diameter (mm): Ø 55
• Front inner diameter (mm): Ø 65
• Height low / high rear part (mm): 50 / 59
• Height low / high front part (mm): 35 / 44
• CODE: TPR101

Car brands

SUZUKI GRAND VITARA I 1.6 4x4 (SQ416)/2.0 4x4 (TA52, TL52, SQ420)/2.0 HDI 110 16V 4x4 (SQ420D, TD83V, JA420WD)/2.0 HDI 110 4x4 (SQ420D, TD82V)/2.0 TD/2.0 TD 4x4
